What is 4K remote video conferencing?
Featuring ultra-high definition and support for encoding protocols such as H.265, H.264 SVC, and H.264 HP, this video conferencing system delivers ultra-high-definition resolution of 4K@30fps for both main and auxiliary streams. It is fully integrated, built with domestic technology, and highly reliable.
System Features:
1) Ultra-High Definition Resolution: The system supports H.265 and video quality up to 8K@60; users can freely choose video layout options, including multi-screen and multi-display configurations.
2) Full Media Convergence: Supports H.323, SIP, RTSP, and SCM protocols, and is compatible with terminals from leading video conferencing brands.
3) Intelligent Conferencing: Features intelligent tracking, adaptive panoramic shooting, voice-based positioning, and automatic speaker tracking; supports natural language interaction and voice control.
4) High Reliability: Telecom-grade architecture, fully interconnected disaster recovery, and support for media board backup, line backup, network port backup, and fan backup
5) MCU Cascading: Supports MCU cascading, providing multi-level and multi-channel cascading as well as conference recording and broadcasting, facilitating network deployment and expansion
6) Comprehensive Support for Domestic Solutions: Fully supports domestic solutions, including domestic Hua chips and SM2/3/4 national cryptographic algorithms

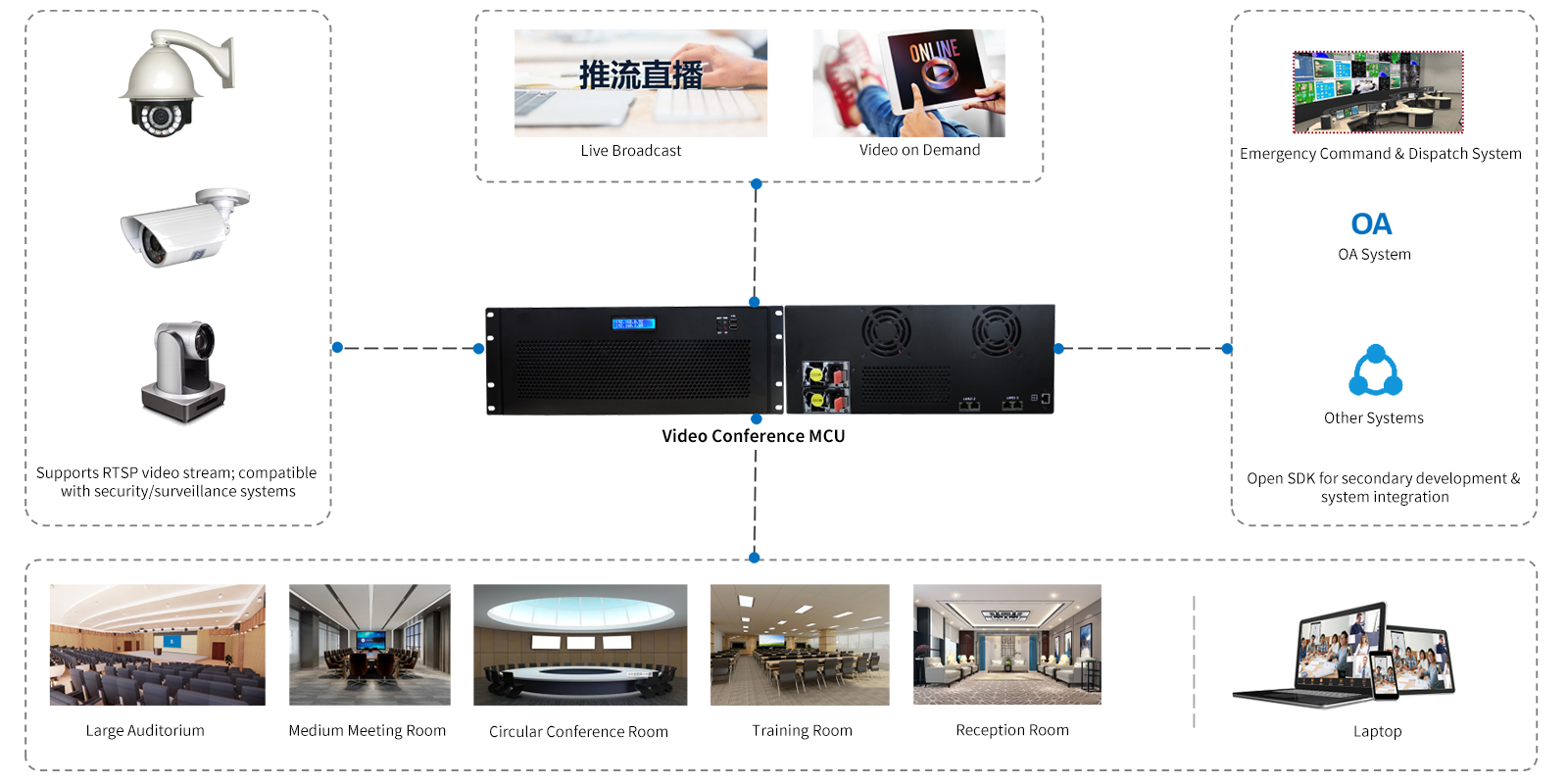

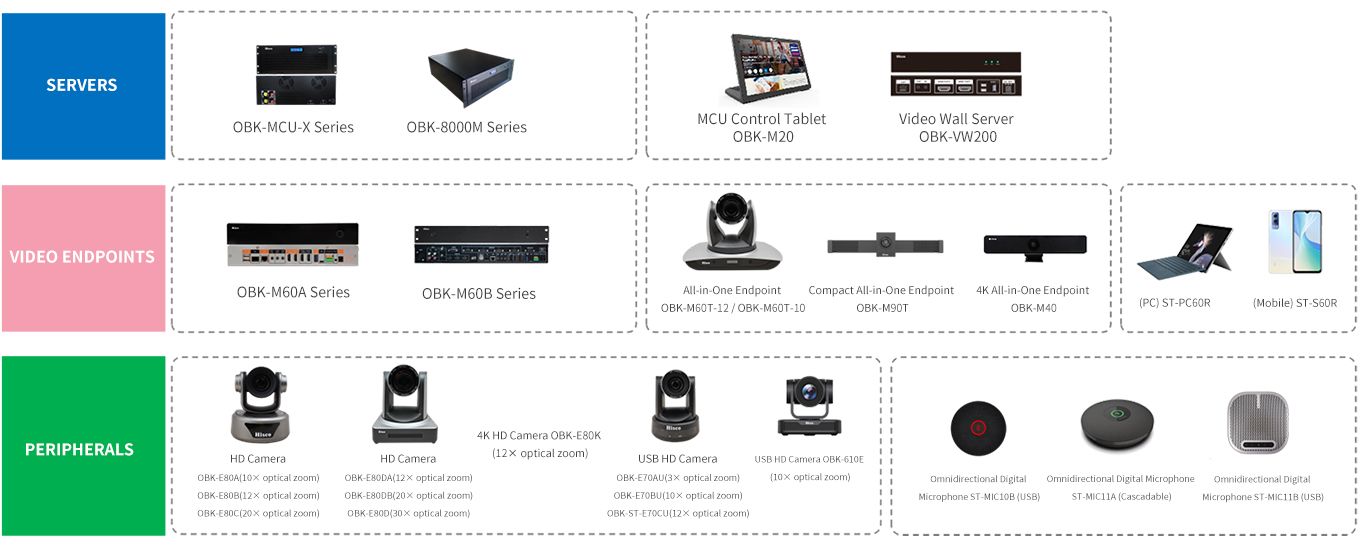

System Architecture:
II. System Advantages
Ultra-HD Video: A next-generation multipoint control unit (MCU) designed for full media convergence, supporting H.265 4K@30 dual-stream conferencing and multi-stream forwarding capabilities. It utilizes the next-generation H.265 SCC codec to enable video conferencing with main and auxiliary streams at up to 4K resolution, natively integrating video, audio, auxiliary streams, and data to provide seamless communication and collaboration capabilities.

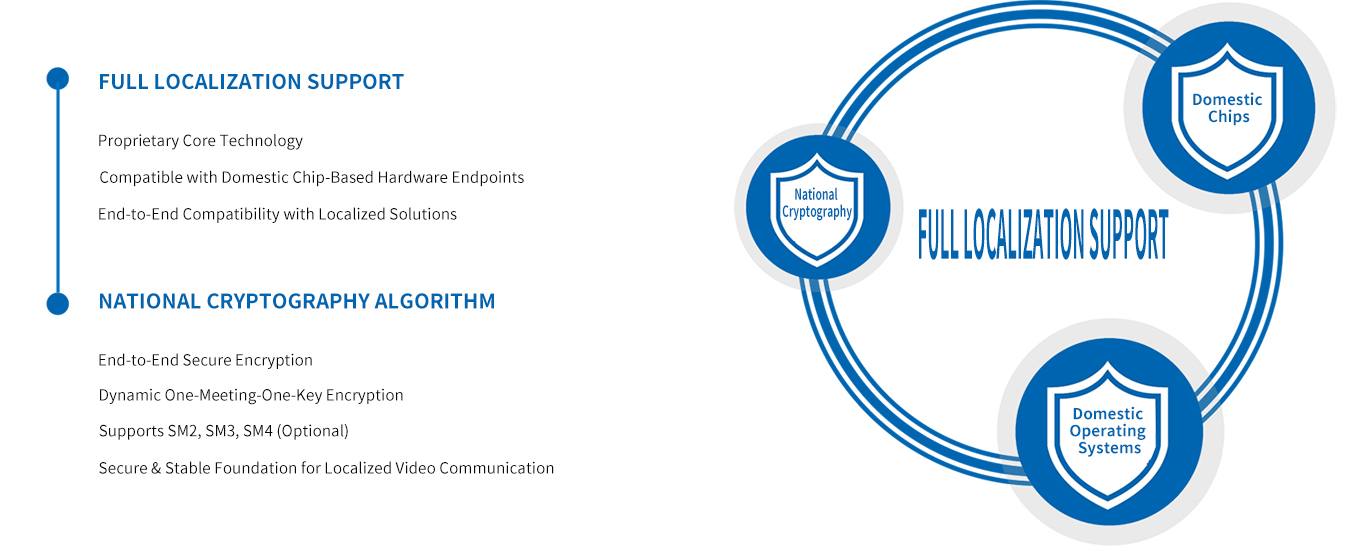

Fully supports domestic manufacturing and Chinese cryptographic algorithms (customization required before placing an order)

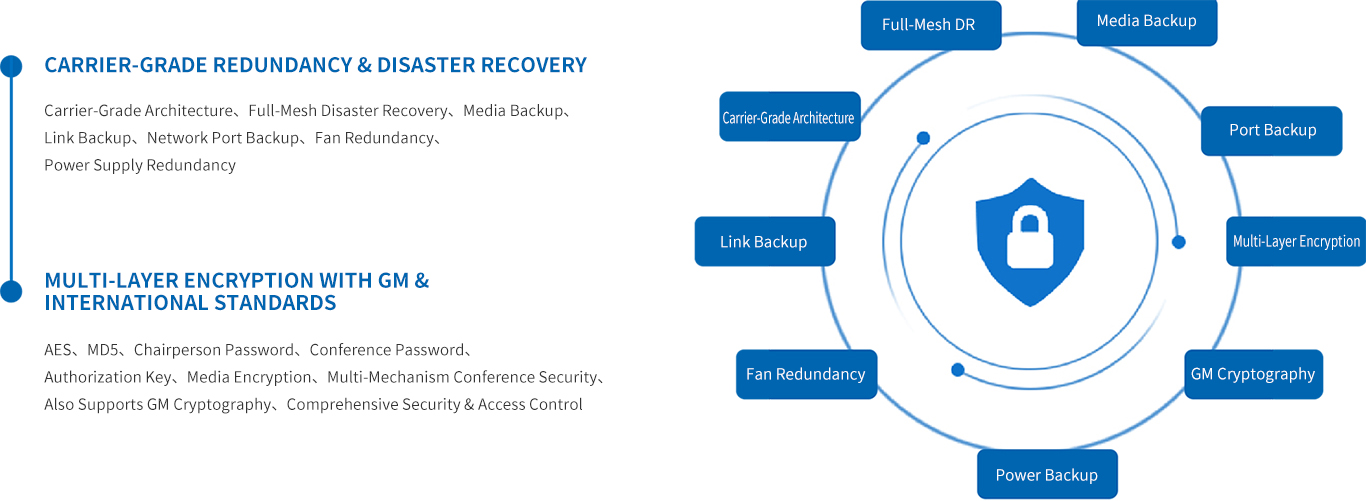

Robust disaster recovery capabilities and multi-layered encryption mechanisms

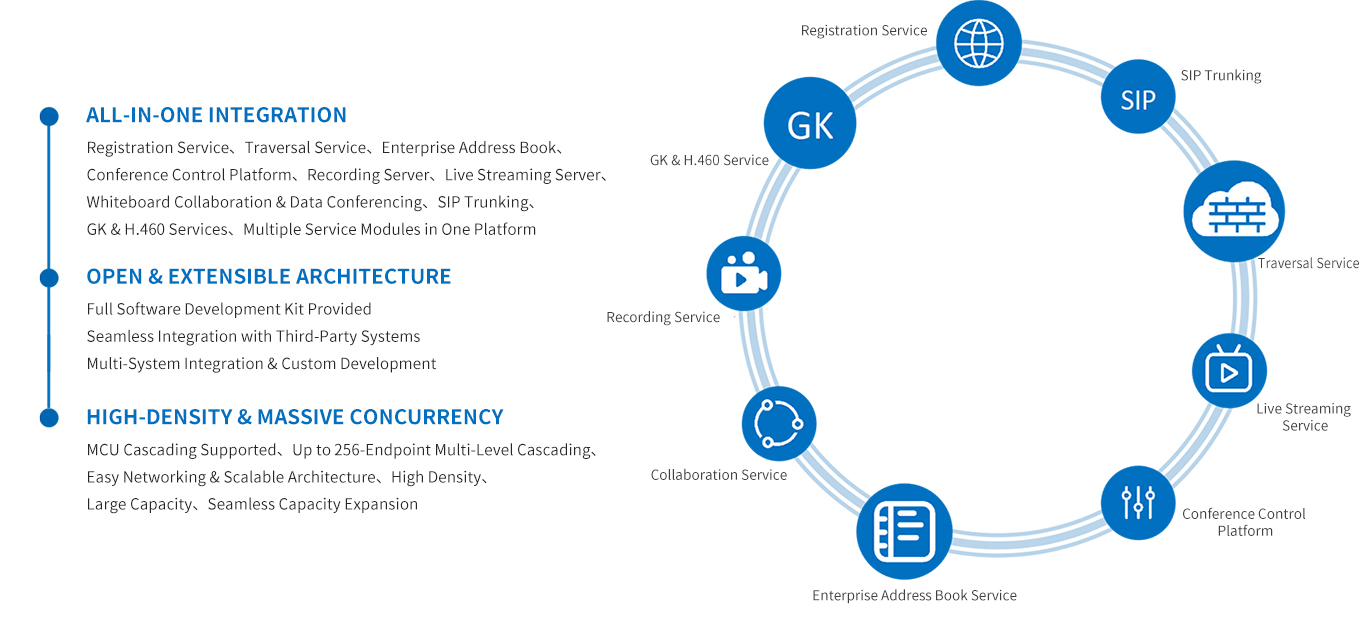

Openness and Integration
Seamless Integration
A Whole New Experience
Collaborative Office
High-Fidelity Stereo
Built into the MCU
The built-in MCU terminal supports hosting single-group conferences with a maximum capacity of 16 locations. It enables multi-screen layouts and supports various common layout types, such as picture-in-picture. A single screen can display up to 25 video feeds simultaneously. It supports primary and secondary video streams, camera control, participant management, meeting recording, and intelligent voice control—making it ideal for small-scale project deployments.
III. Product Introduction
Product Positioning/Classification

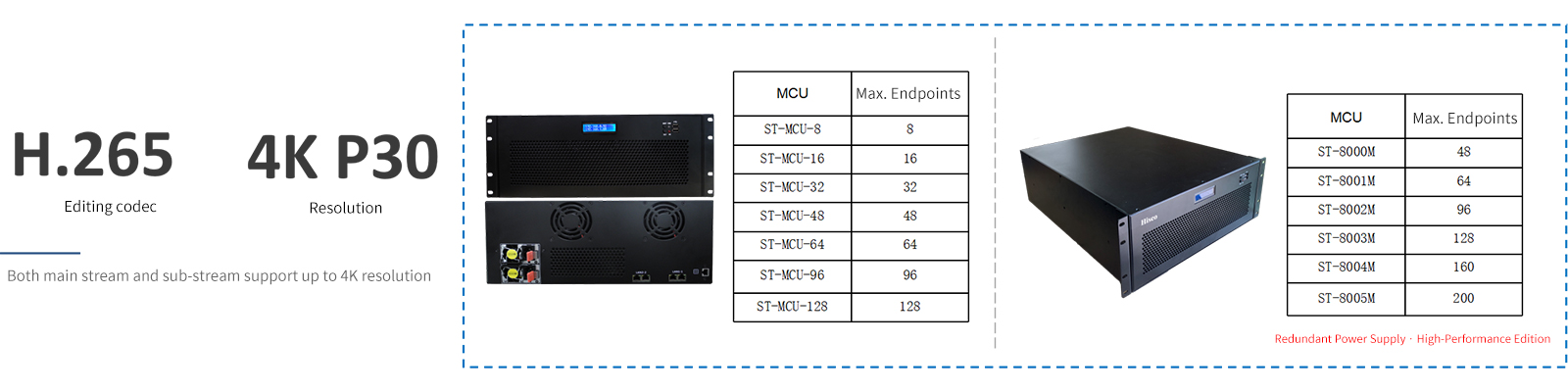

Standalone MCU Server:
UHD (Ultra High Definition), Omnichannel Media Convergence, and the Ultimate Conference Experience:
• The system supports video quality up to H.265, 4K at 30 fps; users can freely choose video layout options for multi-screen and multi-display configurations
• Supports H.323, SIP, RTSP, and SCM protocols, and is compatible with terminals from leading video conferencing brands
• Features proprietary H.265 flexible encoding technology, supporting protocols such as H.264 SVC, H.264 HP, and H.264 BP

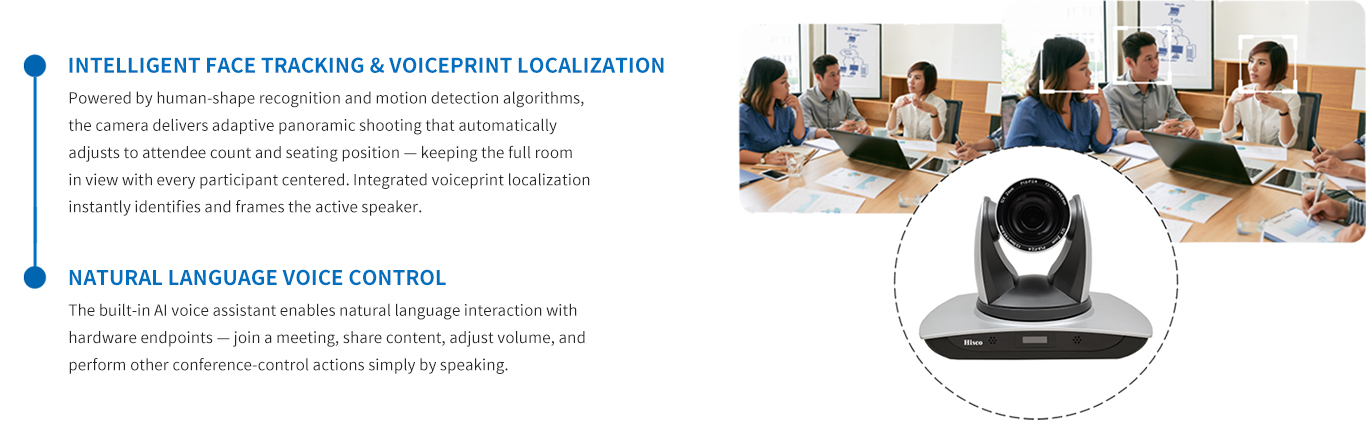

Intelligent, innovative facial tracking and voiceprint localization; supports natural language interaction and voice control
• Algorithms such as human figure recognition and motion detection enable adaptive panoramic shooting. The system automatically adjusts based on the number and locations of participants, ensuring that the panoramic view captures everyone and keeps them centered in the frame. The use of voiceprint positioning technology allows the system to instantly identify the speaker’s perspective.
• Supports natural language voice control; through an AI voice assistant, users can interact with the hardware device using natural speech to perform various meeting control operations, such as joining a meeting, sharing a secondary video stream, and adjusting the volume.
Carrier-grade architecture, high reliability, and comprehensive support for domestically produced solutions
• Carrier-grade architecture, fully interconnected disaster recovery, supports media board backup, line backup, network port backup, fan backup, and power supply backup
• Fully supports domestic solutions, including domestic chips and SM2/3/4 national encryption algorithms (optional)
• Multiple security mechanisms—including AES, MD5, chairperson password, conference password, authorization key, and streaming media encryption—ensure conference security

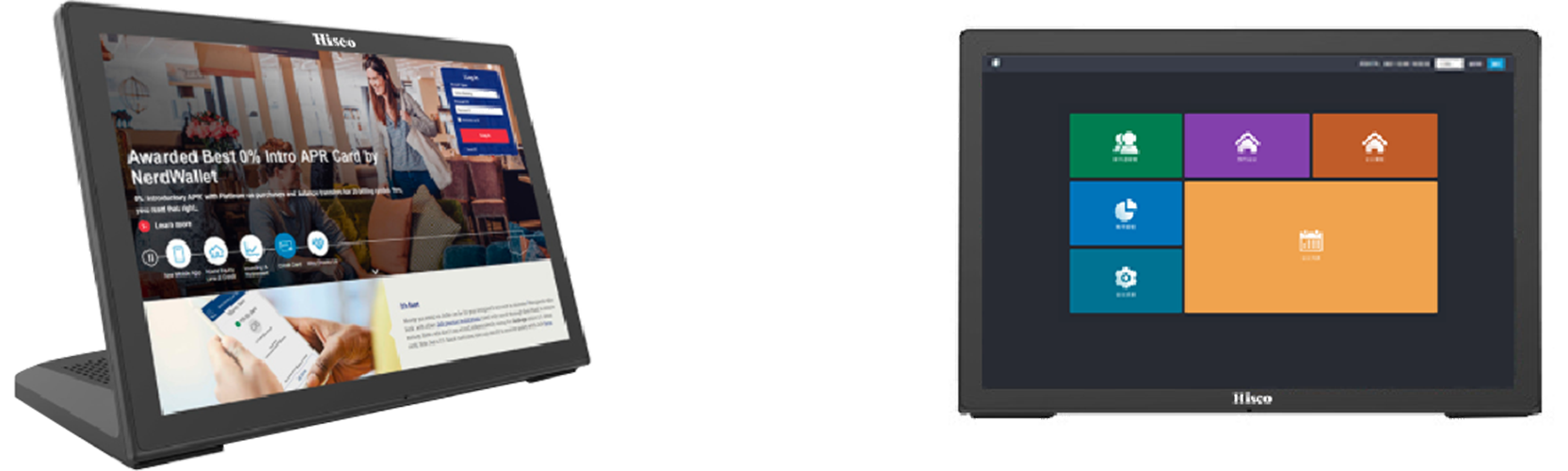

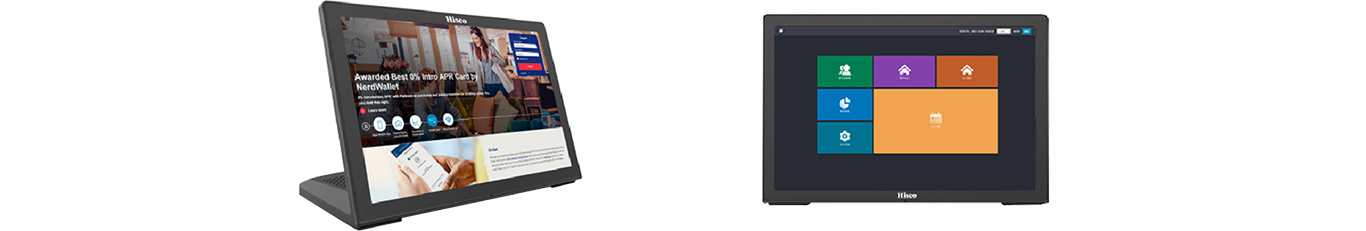

Meeting Control Tablet (Requires an MCU for operation)
All-in-One Design: Features a built-in microphone and a touchscreen Android system to support MCU conference control, enabling centralized management of MCU resources, dynamic allocation of MCU resources, and mutual backup.
Conference Control: Features a built-in microphone and a touchscreen Android system to support MCU conference control, enabling centralized management of MCU resources, dynamic allocation of MCU resources, and mutual backup.

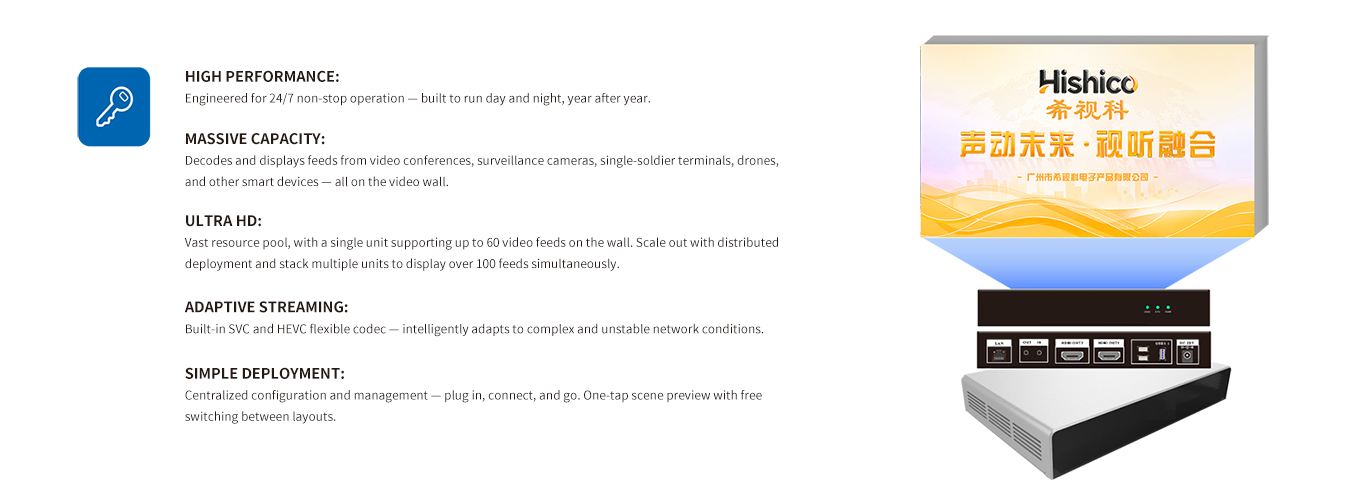

TV Wall Server:

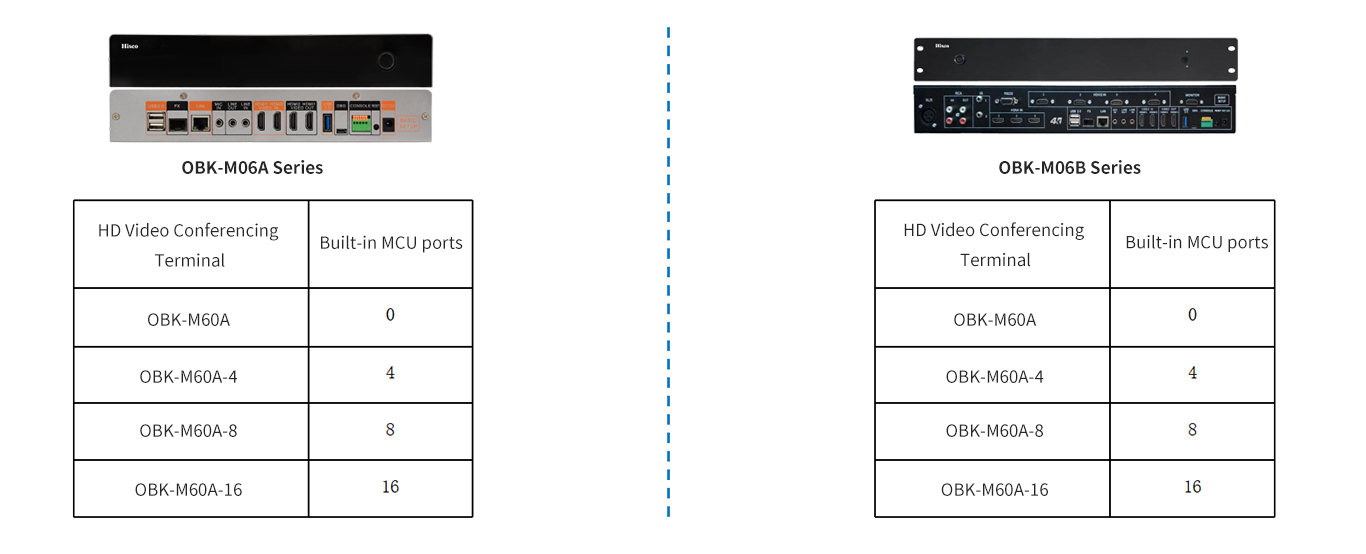

High-Definition Split-Type Terminal (M60A Series)
• Broad Compatibility: Compatible with video conferencing terminals from multiple leading brands, including Huawei, ZTE, Keda, and Poly, and seamlessly integrates with Tencent Meeting and Xiaoyu Yilian.
• Wireless Auxiliary Stream: Supports wireless auxiliary streaming, allowing desktop signals from PCs and other devices to be wirelessly cast to the terminal’s auxiliary stream without the need for video cables. Features an electronic whiteboard function that enables annotation and commentary on meeting documents during sessions, effectively enhancing the quality of meeting content.
• Multi-Screen Display: Supports single-screen dual-display, dual-screen dual-display, and triple-screen triple-display configurations, enabling multi-screen layouts. It supports various common layouts, including picture-in-picture, and can display up to 25 video streams simultaneously on a single screen.
• Configurable Built-in MCU: Supports seamless scalability to a 32-point built-in MCU; enables the hosting of mainstream auxiliary-stream meetings via the built-in MCU; and supports joining meetings from both PC and mobile devices.
High-Definition Multi-Interface Terminal (M60B Series)
•Configurable Built-in MCU: Supports seamless scalability to 32-point built-in MCU functionality; supports hosting main and auxiliary stream conferences via the built-in MCU, and allows participants to join meetings via PC or mobile devices.
• Ultra-HD Experience: Supports 4K resolution input and output, with up to 9 HDMI video input ports.
Exceptional network adaptability, with 30% packet loss tolerance for video.
• Extensive Connectivity: Provides 9 HD video HDMI inputs, 8 audio inputs, and 5 audio outputs to accommodate multi-angle video feeds in large conference venues, with one-touch switching via the built-in matrix.
• Multi-Screen Display: Supports applications such as single-screen dual display, dual-screen dual display, and triple-screen triple display, enabling multi-screen layouts. It supports various common layouts, including picture-in-picture, with a single screen capable of displaying up to 25 video feeds simultaneously.
All-in-One Terminal
• All-in-One Hardware Design: Features a built-in hardware video processing unit and an integrated camera. The built-in camera offers 12x optical zoom and 1080p60 full HD resolution.
Smart Voice Control: Supports smart voice control, allowing users to join or end meetings, adjust volume, and start or stop dual-stream sharing via voice commands.
• Wireless Auxiliary Stream: Supports wireless auxiliary streaming, allowing desktop signals from PCs and other devices to be wirelessly cast to the terminal’s auxiliary stream without the need for video cables. It provides an electronic whiteboard function, enabling annotation and commentary on meeting documents during the session, which effectively enhances the quality of meeting content.
• Multiple Installation Options: The device supports adjustable preset positions, wall mounting, and inverted mounting. It accommodates various deployment scenarios in small and medium-sized meeting rooms.
4K All-in-One Device
• Ultra-HD 4K Experience: Supports 4K video codecs and the H.265 encoding algorithm, delivering ultra-HD video conferencing with more detailed and richly layered visuals for an exquisite, lifelike experience; features exceptional network adaptability with 30% packet loss tolerance.
• Recording and On-Demand Playback: Built-in local conference room recording functionality; integrated recording, on-demand playback, and replay features to meet routine meeting recording needs.
• All-in-One Design: Features a built-in 8-megapixel camera and an 8-microphone array with a 10-meter pickup range; expandable with omnidirectional microphones, gooseneck microphones, and daisy-chain conference systems; integrated design combining a 4K camera, array microphones, and codec.
• Smart Tracking and Voice Control: Supports facial recognition and sound source localization to enable precise automatic video tracking of the speaker; supports smart voice control, allowing users to join or end meetings, adjust volume, and start or stop dual-stream sharing via voice commands.
Lightweight All-in-One Terminal:
• Built-in Microphone: Features a built-in microphone with a pickup range of 5 meters; compact, lightweight, and easy to carry; integrates an all-in-one design combining a camera, codec, and array microphone.
• Convenient Installation: Can be mounted on a TV or monitor; HDMI includes built-in audio output, enabling easy and convenient deployment in small meeting rooms.
• Wireless Auxiliary Stream: Enables wireless screen mirroring without the need for video cables. It offers an electronic whiteboard feature, allowing you to annotate and explain meeting documents during the session, effectively enhancing the quality of meeting content.
• Full HD Quality: 1080p Full HD resolution with a professional fixed-focus lens featuring an 80-degree horizontal field of view. Supports panoramic participation for a smooth, high-definition video conferencing experience.
